Nano OEM recording and streaming PCB products.

UAV, UAS, Aerial and Maritime Drones, manned vehicles video streaming, recording, h264 encoding DVR platform

Bad Wolf Technologies Nano OEM board-level products are primarily designed for unmanned aerial, ground and maritime platforms, miniature drones, observations systems and any other remote video-controlled platforms used for defense, intelligence, surveillance and reconnaissance, otherwise known as ISR.

The Nano MPEG-4 (Advanced Video Coding) AVC Part 10 H.264 encoders, low latency streamers and recorders are deployed worldwide in a variety of civilian and defense applications.

Nano encoders and DVRs are found in manned and unmanned platforms, observation systems, SAR, ISR, law-enforcement, public safety, military, intelligence and other applications.

Additional applications include government, private security, perimeter security, geospatial inspection, aerial firefighting, agriculture and crop inspection, CCTV and more.

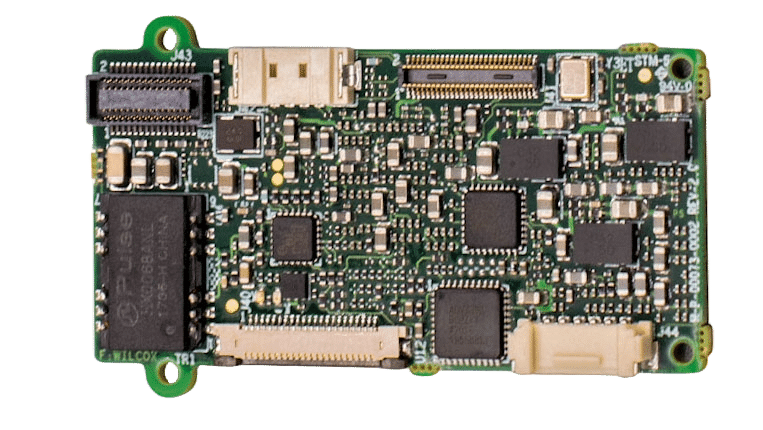

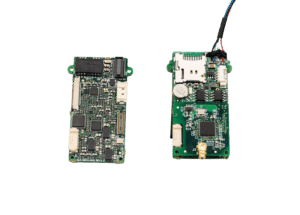

  • Nano tiny HDSDI and CVBS main platform is a dual channel video recorder from Bad Wolf Technologies
1234567
Request More Information

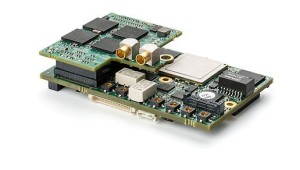

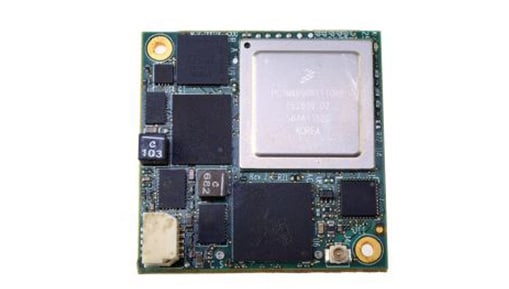

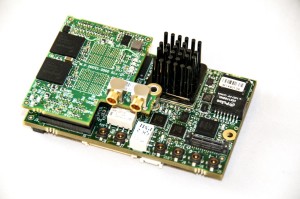

Nano UAV DVR platform is available in three versions: Nano DVR Pro, Nano DVR Mini and Nano DVR Micro.

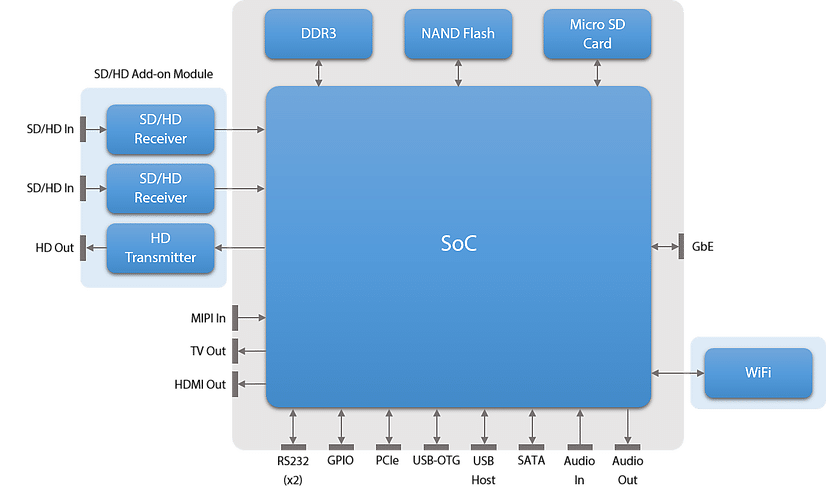

Each Nano DVR handles multiple video channels and simultaneously supports:

  • Video and audio recording, h264 encoding dvr platform, decoding, transcoding and display
  • Video pre-processing*, stabilizer**, scaler, text overlay, graphics overlay*, picture-in-picture*
  • Position*, direction*, orientation* and other telemetry data capture*
  • GPS (option)
  • Transport Stream generation and extraction
  • Video, audio and data***  recording and playback
  • UAV or drone video encoding and STREAMING over NARROW BAND and broadband NETWORKS
  • End-to-end low-latency streaming over variety of Datalink products, radio band, ethernet or Wi-Fi.
  • Real-time advanced video analytics engine (option)
  • LOW POWER, LOW WEIGHT, LOW LATENCY – Nano DVR was specifically designed to be highly efficient for battery-powered applications where size and weight are at a premium
  • Windows, Android and iOS web-browser based control application over networks
  • Feature-rich customer-implemented SOFTWARE CONTROL API protocol for REMOTE DVR OPERATION from a PC or a SoC
  • BUNDLED SOFTWARE: Low latency decoder, streamer and player (online or off-line) application, web-browser gui setup and more

* May require custom firmware changes.
** Requires third party add-on software.
*** May require 3rd party add-on hardware or software
