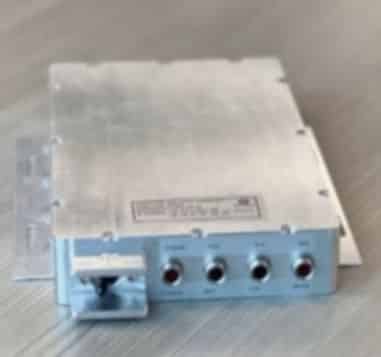

Corsair™ 4 channel COTS Mil Spec DVR with external SSD storage.

The Mil Spec Corsair DVR is a high and standard definition military video recorder for Naval Vessels, Aircraft and harsh environments.

Record HD-SDI, RS170 and CVBS NTSC PAL video and audio from multiple sources

Bad Wolf Technologies Mil Spec Corsair DVR is a shipborne, airborne & marine solid-state HD-SDI High-Definition and Standard Definition video recorder built to military standards and qualified to MIL-STD-461E & MIL-STD-810G CH1 (change 1) shipborne and aviation while being a non-ITAR COTS completely off the shelf product. It may be modified to buyer requirements.

Corsair multiple encoders allow a mix and match of video signals, a requirement for a military video recorder. For example, the buyer may select from 1 to 2 CVBS NTSC PAL and 1 to 2 HDSDI for a total of up to four (4) high and standard definition video inputs. Or select 4 x RS170 CVBS NTSC PAL.

The chassis features multiple front-mounted LEDs indicating streaming, storage and video status for all four (4) channels.

The quick disconnect external SSD storage device allows for super-fast media replacement and unlimited storage.

Records High-Definition Video & Audio from HD-SDI, 3G-SDI high definition, or SDI NTSC/PAL standard definition video from regular or multi-sensor cameras, mission computers and a variety of other video sources.

Some of the Mil Spec Corsair DVR features include:

Video/Audio Information (abridged)

Codec: MPEG-4 Part 10 Advanced Video Coding (H.264)
Resolution: NTSC/PAL, 1080p30/p25, 1080i60, 1080p30, 720p60, 720i60, 720p30/p25
Compression: CBR and VBR
Video Bitrate: up to 23 Mbps CBR, VBR
File Format: Transport Stream (.ts) – for fault tolerance
Audio Codec: G711, G726, mp2, mp3 or opus
Sample Rate: 8000/41000/48000, 8 bits or 16 bits per sample

Streaming, low latency

TS, RTP or RTSP unicast and multicast
Record single or multiple video streams to/from other network devices
100ms low-latency player available upon request

Filesystem support

FAT, FAT32, exFAT, EXT3 and EXT4

Storage support

Recording media, configurable – detachable hot-swap USB 2.x/3.x SSD
Built-in SD secure digital media with access via Ethernet or USB OTG (instead of engineering use)

Status LED (4×2), NVIS Bi-Color

NVIS (night vision compatible)
2-in-1, Top/Bottom: Green/Green, Yellow/Yellow, Yellow/Yellow, and Green/Green
Embedded in stainless steel protective housing
