HD-SDI High Definition Bullet and Cube Video Cameras

Datatoys Video Systems HD-SDI, 3G-SDI, and CVBS PAL / NTSC cameras are specifically matched with the AirKnight HD series of airborne rugged video recorders for the optimal performance or can be used for direct viewing on a monitor. They are specifically engineered for high performance, durability in harsh environments, compact size and ease of use.

SD Standard Definition Video Cameras

Datatoys also offer a line of high resolution standard definition 600TVL (600 television lines of resolution) cameras which withstand the rigors of the harsh environments our systems operate in. These cameras are best used with our AirBoss Professional product and may also be used with the AirKnight HD line of recorders.

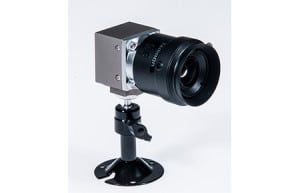

HD Mini Cube Camera – 29mm x 29mm

The HD Mini Cube Camera features full high definition 1080p60/30 resolution at true 3G SDI quality.

  • Full HD 1080p60 3G-SDI and 1080p30 HD-SDI cube camera
  • 1/2.8” 2.38 Megapixel Sony Exmor CMOS Sensor
  • Fully Adjustable Settings.
  • Easy to Mount.
  • C/CS Mount Lens options available

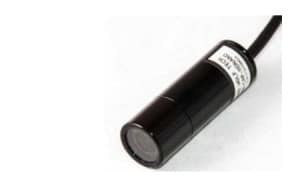

HD Nano Bullet Camera – 19mm x 56mm

Datatoys 19mm HD Nano Bullet Camera is the smallest bullet style camera available on the market and features full high definition 1080p resolution while being compact and durable.

  • 2.1 Megapixel, 1/3″ Panasonic Color CMOS sensor
  • Full HD high definition 1080p60 3G-SDI and 1080p30 HD-SDI bullet camera
  • Water Proof to IP67
  • 6 Lens Options (20 to 115 degrees FOV)

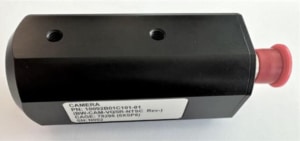

Helicopter Hoist Camera

Bad Wolf Technologies llc is proud to introduce a brand-new hoist camera. This rugged hoist cam handles vibration, shock, fresh & saltwater spray and submersion with ease. It has Bad Wolf Technologies 2nd generation aviation and shipborne power supply. The new power supply is designed to meet rigorous RFI/EMI and environmental requirements found in military and civilian aviation and marine applications. Tested to DO-160G EMI/RFI and environmental requirements. Bad Wolf Tech hoist cam installs in Sikorsky S92 helicopters without a need to change the existing camera mount or camera wiring harness.

Datasheet

E700 Bullet Camera – SD Standard Definition

As the name suggests, the “SD-NANO” is an analog only version of Bad Wolf Technologies “HD-NANO” bullet camera. E700 stands for the follow-on to the E600 analog camera. SD-NANO is our lightest and smallest high-end bullet / lipstick camera yet.

  • 1/3″ SHARP (960H) CCD
  • High Sensitivity
  • 700TVL (520K Pixels)
  • Rated to IP67 standard (water/weather/dustproof)

E600/WDR 600 Bullet Camera-SD Standard Definition

The E600/WDR 600 Bullet Camera is one of the most popular aviation cameras. Small, compact and light, the E600 is perfect for aviation and rugged environments.

  • Rugged design with 600TVL of resolution.
  • Multiple user changeable lenses available!
  • Excellent low light performance.

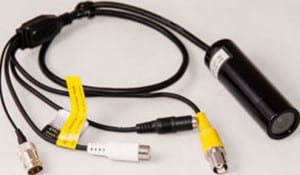

HD Mini Bullet Camera – 23mm x 77mm

Datatoys 23mm HD Mini Bullet Camera features full high definition 1080p resolution while being compact and durable. This is the most popular cameras choice for the Aviation Market.

  • 2.1 Megapixel, 1/3″ Sony Exmor Color CMOS sensor
  • Full HD high definition 1080p30 HD-SDI bullet camera
  • Fully Adjustable Settings.
  • Water Proof to IP67.
  • Digital Day and Night
  • 6 Lens Options (20 to 115 degrees FOV)

HD Mini Bullet Camera with Quick Connector – 23mm x 77mm

Datatoys exclusive HD-SDI Mini Bullet Camera with Quick Connector built on the camera body is designed to run both HD-SDI and Power signals through one connector.

  • Full HD high definition 1080p30 HD-SDI bullet camera
  • Single Quick Connector on Camera for Easy Install
  • Use our Multi-Core Single Shielded Cable to run both HD-SDI and power signals
  • Fully Adjustable Settings.
  • Easy to Mount.
  • 6 Lens Options (20 to 115 degrees FOV)

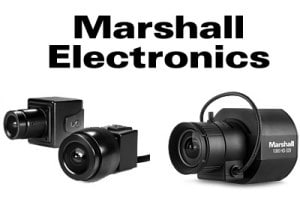

Marshall Electronics HD Cameras

Marshall Electronics’ Optical Systems Division supplies lens and camera products to end-user and OEM customers worldwide. They are a global OEM optical products supplier to Tier-1 automotive, leading IP camera, industrial, security, machine vision, military and police equipment Original Equipment Manufacturers.
