Mission Recording & Debriefing for Aviation

Mission Recordings.

Bad Wolf Technologies comprehensive Mission Recording & Debriefing Systems for Aviation are tailored to meet the specific needs of professional aircraft and helicopter pilots and instructors, just like you. Bad Wolf Technologies Recording & Debriefing systems are equipped with all the essential tools required for effective mission recording & debriefing sessions.

At the heart of the system are the AirKnight HD, AirKnight HD2, and AirKnight HD4S airborne/aviation video recorders.  The AirKnight HD family of aviation recorders support HD-SDI, 3G-SDI, HDMI and RS170/CVBS video formats. These recorders are compatible with Bad Wolf Technologies’ High-Definition HD-SDI and 3G-SDI video cameras, boasting resolutions of up to 1080p60. The AirKnight HD family of aviation recorders is compatible with all industry-standard 3rd party video cameras supporting various video outputs including 3G-SDI, HD-SDI, SDI, HDMI, and RS170/CVBS NTSC PAL.

And of course, all Bad Wolf Technologies aviation video recorders support FLIR sensors.

Points of Interest and Geospatial Integration.

One unique feature of Bad Wolf Technologies’ Mission Recording is the ability to geotag or georeferenced points of interest. This is achieved by pressing the waypoint “push button” switch. When triggered, the system creates a bookmark and saves it in a GPX data file, along with additional file formats if selected, which are then stored on the storage media.

Mission Debriefing Phase.

During the debriefing phase, the geo-enabled video recordings can be viewed using 3rd party geospatial software, such as Remote Geo Line Vision, allowing for a detailed analysis of the mission.

Furthermore, since the system also saves a copy of the file in KML format, the flight path (excluding points of interest) can be viewed in Google Earth. This comprehensive overview of the mission makes these systems an excellent tool for aviation professionals.

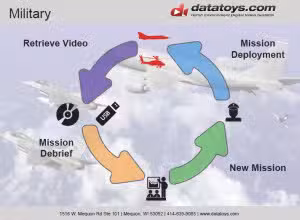

Workflow

Request more information

RedHawk HD®

Record Video & Audio in full 1080p 30/60 HD high definition with a true Milspec solid state airborne video recorder. The RedHawk HD® is built to military standards and is qualified to MIL-STD-461F & MIL-STD-810G CH1.

  • High Definition and standard definition airborne video recorder.
  • supports 3G-SDI, HDSDI, SDI, RS170/CVBS NTSC PAL.
  • qualified to MIL-STD-461F & MIL-STD-810G CH1.
  • Deployed by USAF and USN

AirKnight HD Series

Full 1080p60 HD airborne video recorder designed for professional aircraft operations. Record one or two HD-SDI or HDMI Inputs to USB or SD or Switch between up to four HD-SDI cameras.

  • High Definition 1080p60 (higher for HDMI).
  • High-definition: 3G-SDI, HD-SDI and HDMI
  • Standard definition: RS170/CVBS PAL NTSC.
  • On-screen GPS Data Video Overlay.
  • GPS Data Recording.
  • User Data Recording.
  • Supports multiple datafile formats.
  • Record to USB or SD.
  • Smart choice for a non-Milspec aviation video recorder.
  • High Definition up to 1080p60 3G-SDI and HDMI.
  • Record to USB or SD.

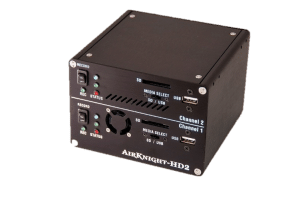

AIRKNIGHT HD2 – two channel Aviation DVR

AirKnight HD2 is a full 1080p60 3G-SDI airborne video recorder designed for professional aircraft operations. Record one or two 3G-SDI, HD-SDI or HDMI Inputs to USB flash or SD solid state media. Integral part of a mission recording & debriefing video system.

  • High Definition 1080p60.
  • 3G-SDI, HD-SDI and HDMI.
  • RS170/CVBS NTSC PAL.
  • GPS Data Recording.
  • User Data Recording.
  • On-screen GPS Data Video Overlay.
  • Record to USB or SD.
  • Smart choice for a multi-channel non-Milspec recorder for aviation

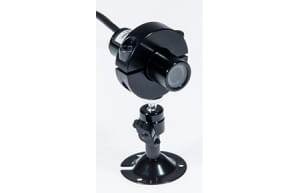

HDSDI Mini Bullet Camera

The HD Mini Bullet Camera, p/n BW-CAM-HDMINI, features full high definition 1080p resolution while being compact and durable.

  • Full HD (FHD) HD-SDI 1080p30.
  • Simultaneous RS170/CVBS NTSC PAL Standard Definition video out.
  • Tough, rugged and proven by thousands of users.
  • Fully Adjustable Settings.
  • Easy to Mount.
  • 6 Lens Options (20 to 115 degrees FOV)

Multi-View HD

Input four HD cameras and output a completely customizable Multi-View HD video stream to a recorder or monitor.

  • High Definition 1080p60 inputs.
  • Accepts SDI, HD-SDI, & 3G-SDI
  • Completely Customizable Output
  • 10-32VDC Wide Range Input

HDNANO HD-SDI CAMERA

Introducing the BW-CAM-HDNANO Mini Bullet camera: a tiny video powerhouse offering full HD-SDI and 3G-SDI high-definition and RS170/CVBS NTSC PAL standard-definition video outputs.

Despite its impressive capabilities, this camera is remarkably small, measuring just 19mm x 56mm. At a mere 80 grams (2.82 oz), it’s not quite lighter than air, but it’s incredibly small and lightweight.

Built tough and waterproof to IP67, BW-CAM-HDNANO thrives in harsh environments. Unsurprisingly, it’s a top choice for aviation applications, including rotorcraft tail cameras, hoist and lift cameras, flight testing, pilot training, cargo cams for monitoring cargo hold contents, cockpit cameras, and more.

HD MINI CUBE CAMERA

The HD Mini Cube Camera features 1080p60 3G-SDI and 108p30 HD-SDI full high definition resolution

  • Full HD high definition 1080p60 3G-SDI and 1080p30 HD-SDI mini cube camera
  • 1/2.8” 2.38 Megapixel Sony Exmor CMOS Sensor
  • Fully Adjustable Settings.
  • Easy to Mount.
  • CS Mount Lens of your choice
  • Ask for different Lens options

E700 SDNANO Bullet Camera – SD Standard Definition

As the name suggests, the “SDNANO” is an analog only version of Bad Wolf Technologies “HDNANO” bullet camera. E700 stands for the follow-on to the E600 analog camera. SDNANO is our lightest and smallest high-end bullet / lipstick camera yet.

  • 1/3″ SHARP (960H) CCD
  • Analog (SD) CVBS NTSC PAL video output
  • High Sensitivity
  • 700TVL (520K Pixels)
  • Rated to IP67 standard (water/weather/dustproof)

E600 Bullet Camera

The E600 Bullet Camera is one of the most popular aviation cameras. Small, compact, light, and high resolution, the E600 is perfect for aviation.

  • 1/3″ CCD sensor
  • Superior design provides for 1,000 TVL (TV Lines of resolution).
  • Multiple user changeable lenses available.
  • Excellent low light performance.
  • Rugged, tough, reliable and proven aviation camera.
  • Built-in vibration mitigation technology
  • Waterproof to IP67/IP68
  • Long service life
  • Used by airframe manufactures, both helicopter and aircraft.
